产品说明
EPG-L Series Industrial Electric Parallel Gripper, Long Stroke, High Payload
Power-off holding, compact structure, max single-side gripping force 800N, 0-220mm adjustable stroke
Gripping feedback Multi-face mounting Power-off memory Power-off self-lock Extra-large stroke
|
Model
|
EPG-L42-050
|

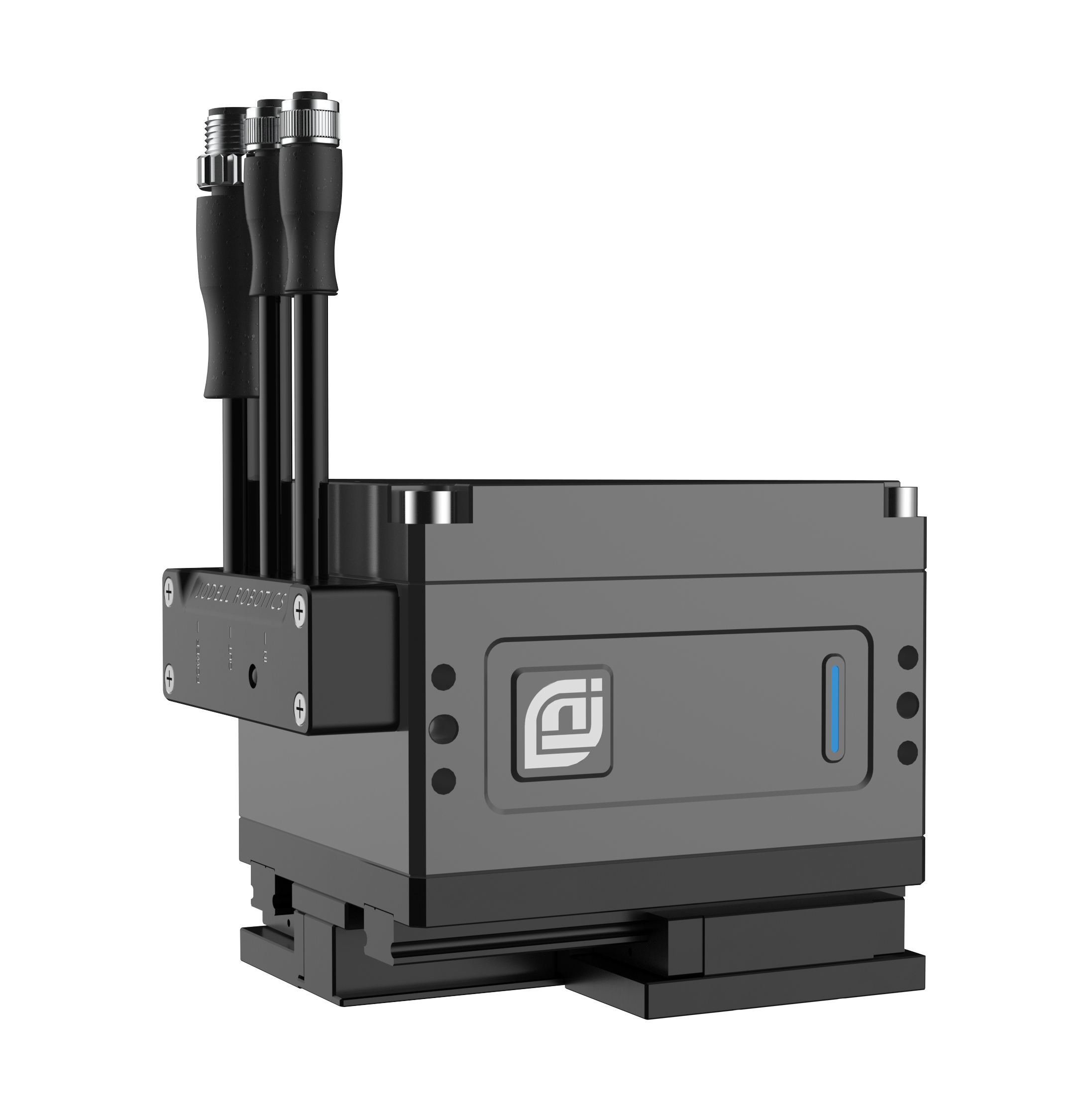

EPG-L80-150
|

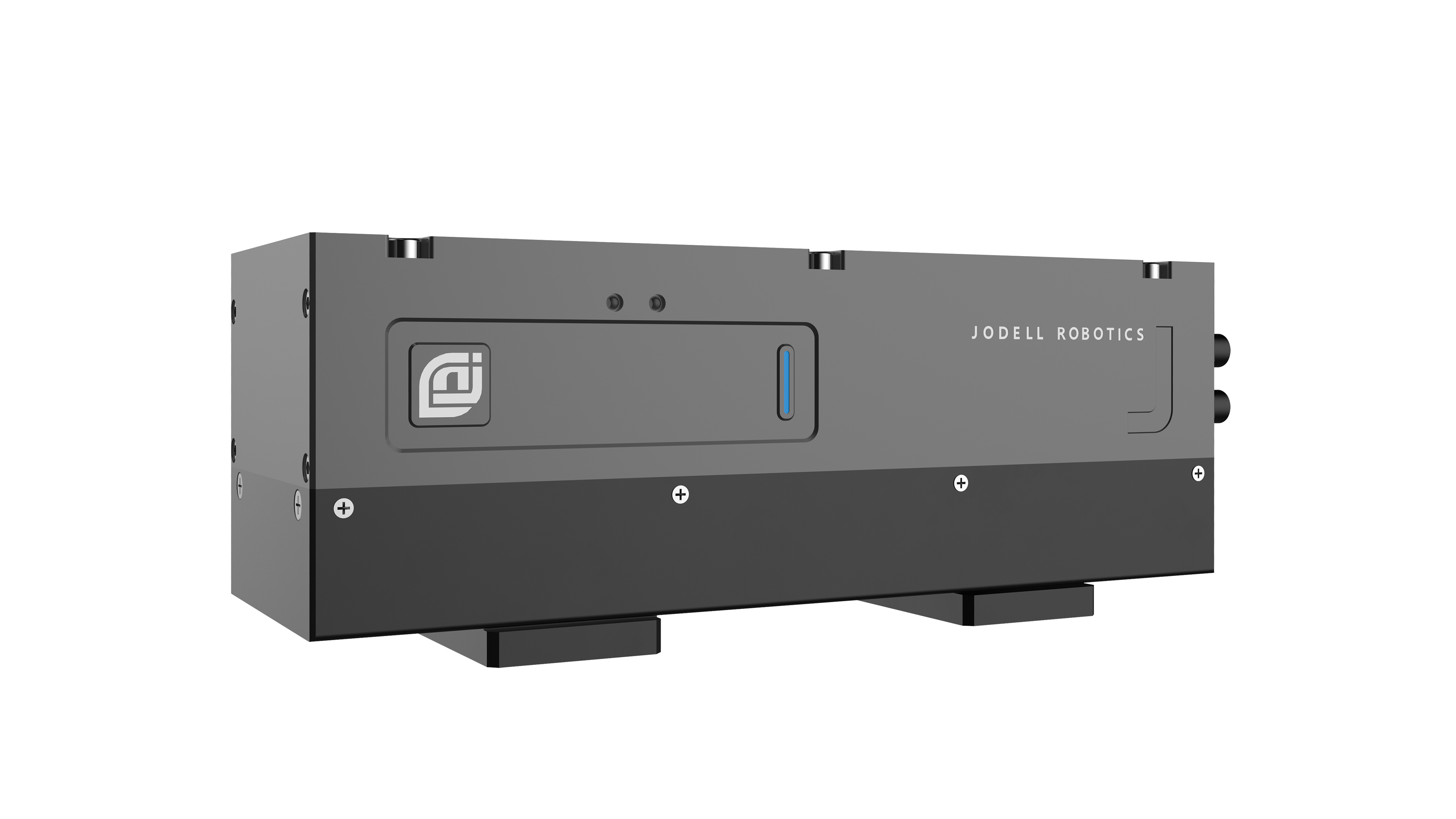

EPG-L80-400
|

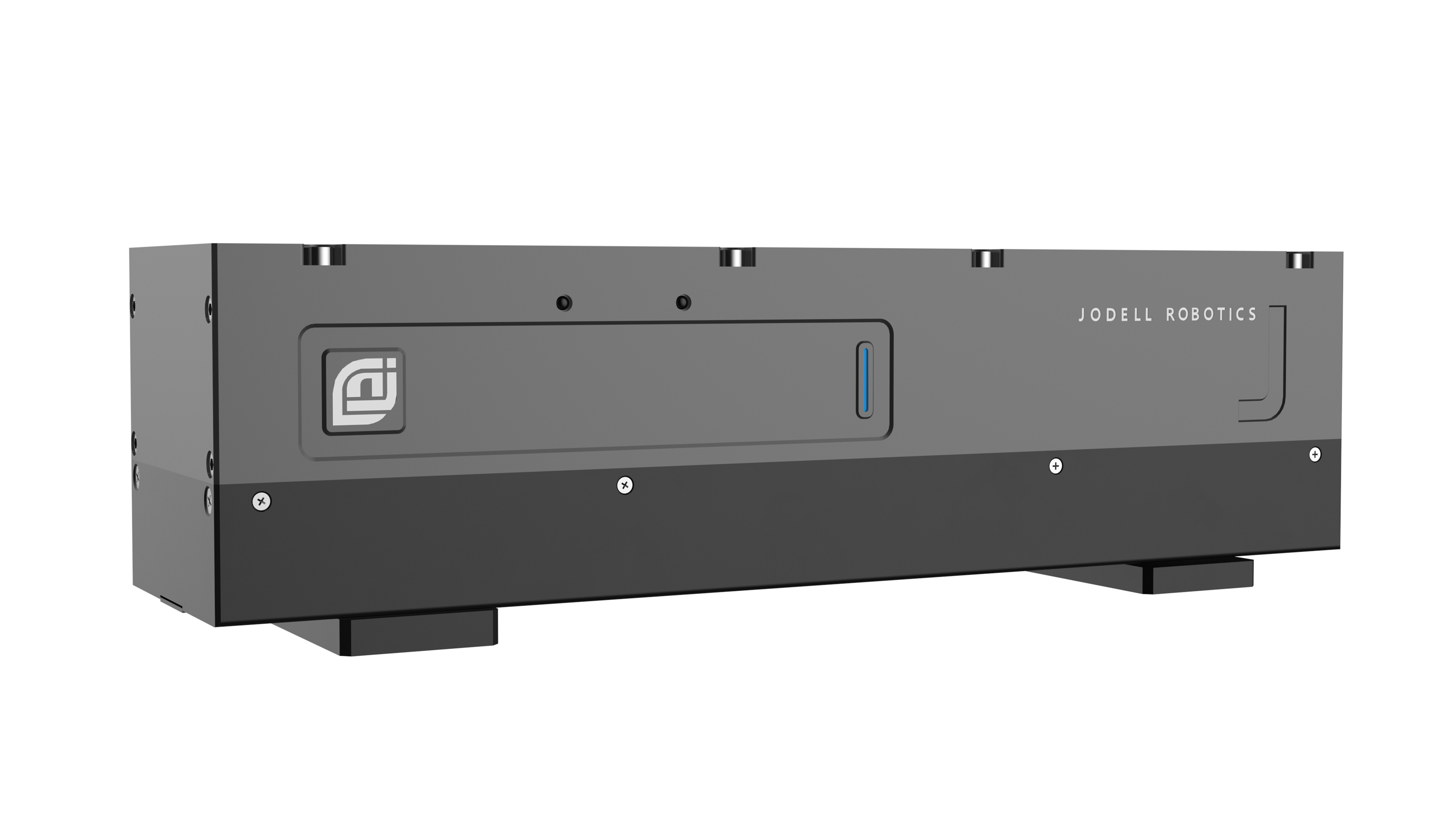

EPG-L180-800
|

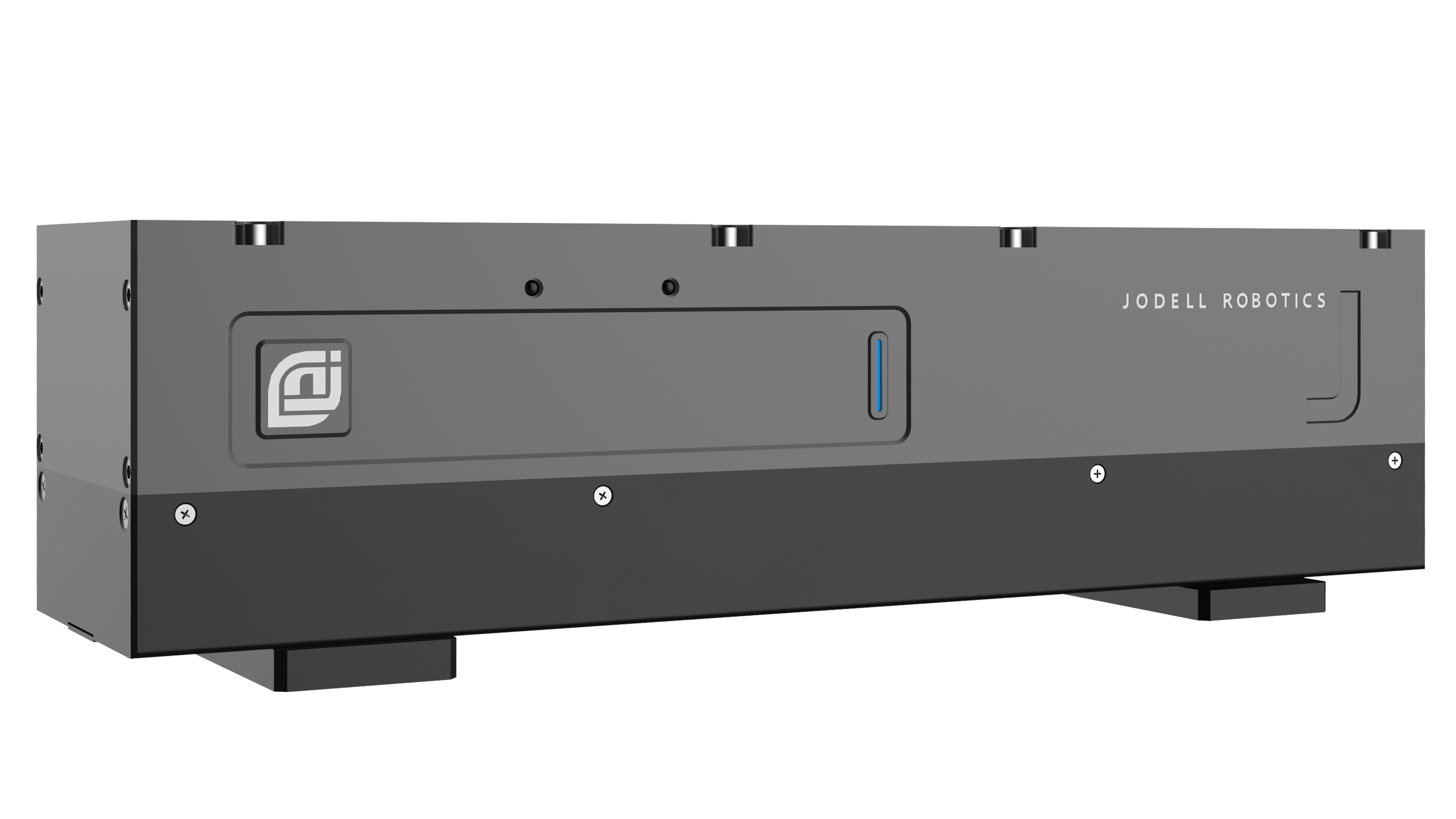

EPG-L220-800
|
|
Adjustable Stroke
|
0-42mm
|
0-80mm
|
0-80mm
|
0-180mm
|
0-220mm
|
|
Single-Finger Gripping Force
|
50N
|
40-150N
|
40-400N
|
100-800N
|
100-800N
|
|
Open/Close Time
|
0.16s
|
0.53s
|
1.1s
|
2s
|
2s
|
|
Max Recommended Load
|
1kg
|
3kg
|
6kg
|
12kg
|
12kg
|
|
Drop Detection
|
Supported
|
Supported
|
Supported
|
Supported
|
Supported
|
|
Body Weight
|
0.74kg
|
1.5kg
|
3kg
|
4kg
|
4.8kg
|
|
Position Repeatability
|
±0.05mm
|
±0.02mm
|
±0.05mm
|
±0.05mm
|
±0.05mm
|
|
Rated Current
|
3A
|
5A
|
1A
|
2A
|
1A
|
|
Max Current
|
-
|
7A
|
2A
|
5A
|
2A
|
|
Communication Protocol
|
EtherCAT
|
EtherCAT
|
EtherCAT
|
EtherCAT
|
Profinet
|
|
Permissible Static Load Fz (Vertical)
|
800N
|
382N
|
1000N
|
1000N
|
1000N
|
|
Permissible Static Moment Mx
|
19.6N.m
|
38N.m
|
76.44N.m
|
76.44N.m
|
76.44N.m
|
|
Permissible Static Moment My
|
18.66N.m
|
36N.m
|
160N.m
|
320N.m
|
320N.m
|
|
Permissible Static Moment Mz
|
18.64N.m
|
36N.m
|
160N.m
|
320N.m
|
320N.m
|
|
*Fingers not included with this series
|
