产品说明
JQ3-5 Series
The JQ3-5 industrial dexterous hand features highly adaptable shape-adaptive grasping. With outstanding versatility, the JQ3-5 adapts to cylinders, polyhedrons, spheres and other shapes with excellent shape adaptability. It can be widely applied in education, research, logistics, aerospace and security industries.
Product Features

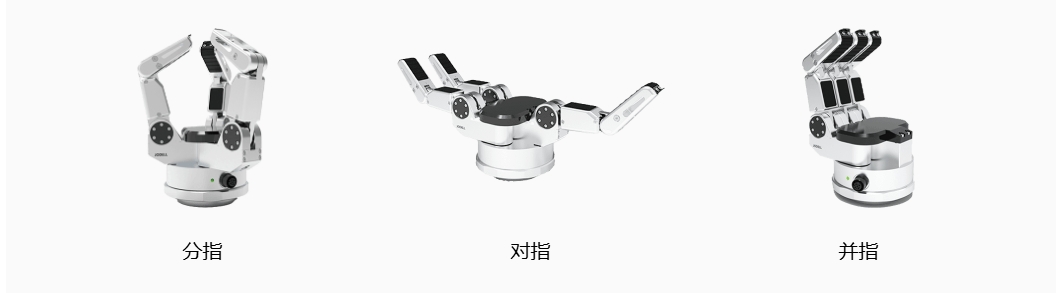

Operating Mode
Full Series Specifications
|
Model
|
JQ3-5
|
|
Degrees of Freedom
|
7
|
|
Gripping Force
|
5-20N
|
|
Dead Weight
|
0.98kg
|
|
*Max Recommended Load
|
5kg
|
|
Operating Voltage
|
DC24V±10%
|
|
Max Current
|
3A
|
|
Power
|
60W
|
|
Open/Close Time
|
No more than 1s
|
|
Communication Protocol
|
Modbus RTU（RS 485）
|
|
Drive Method
|
Servo Motor Driven
|
|
Gripping Method
|
Pinch, clamp, envelope grasping
|
|
Finger Structure
|
Three fingers
|

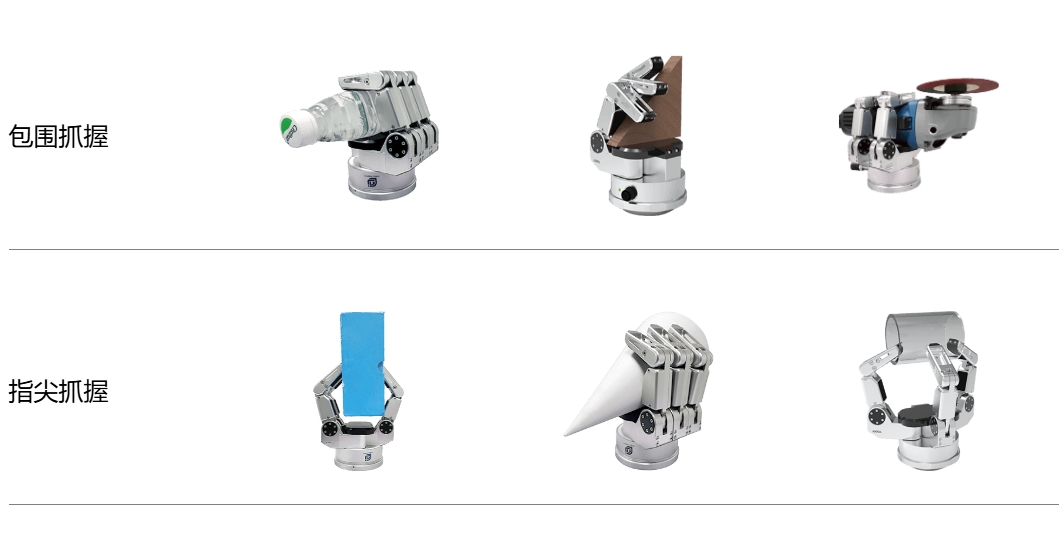

Application Scenarios
